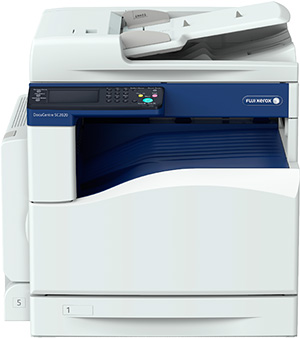

New Fuji Xerox SC2020 A3 Colour Laser Multi Function Printer
New Fuji Xerox SC2020 A3 Colour Laser Multi Function Printer
Item Description
Type Desktop
Memory Capacity 512 MB (Max. 512 MB)
Hard Disk Capacity Not Available
Colour Capability Full colour
Scan Resolution 600 x 600 dpi
Print Resolution Output Resolution : 1200 x 2400 dpi
Data processing resolution : 600 x 600 dpi
Halftone / Printable Colours 256 levels of colour (16.7 million colours)
Warm-up Time 39 seconds or less (At room temperature 20 ºC)
Original Size Maximum of 297 x 432 mm (A3, 11 x 17") for both Sheet and Book
Paper Size Max. A3, 11 x 17"
Min. A5 (Bypass Tray : Non-standard size : 89 x 98 mm)
Image Loss Width Lead edge 5.5 mm or less, trail edge 5.5 mm or less, right / left edge 5.5 mm or less
Paper WeightNote1 Tray 1 Tray 1 : 60 to 90 gsm, Tray 2 (Optional) : 60 to 256 gsm
Bypass Tray 60 to 216 gsm
First Copy Output Time B / W : 8.6 seconds (A4 LEF / Monochrome priority mode)
Colour : 10.8 seconds (A4 LEF / Colour priority mode)
Reduce / Enlarge Size-to-Size 1 : 1 + / - 0.7%
Preset 50%, 70%, 81%, 86%, 100%, 115%, 122%, 141%, 200%
Variable 25 to 400% (in 1% increments)
Continuous Copy SpeedNote2 A4 LEF B / W : 20 ppm, Colour : 20 ppm
A4 / B4 / A3 / B5 LEF / B5 B / W : 12 ppm, Colour : 12 ppm
Paper Tray Capacity Standard Tray 1 : 250 sheetsNote3
Bypass Tray : 100 sheetsNote4
Optional Tray 2 : 500 sheetsNote3
Max. 850 sheets (Main Unit + One Tray Module)
Continuous CopyNote5 999 sheets
Output Tray Capacity 250 sheets (A4)Note3
Power Source AC 220 - 240 V + / - 10%, 5 A, 50 / 60 Hz common
Power Consumption 220 V : 1.1 kW or less, 240 V : 1.2 kW or less
Sleep mode : 1.4 W or less
Low power mode : 46 W or less
Ready mode : 78 W or less
Dimensions W 595 x D 586 x H 549 mm (With platen cover)
W 595 x D 586 x H 634 mm (With document feeder)
WeightNote6 43 kg (With platen cover)
49 kg (With document feeder + Duplex Output Unit)
Space RequirementNote7 W 947 x D 586 mm (With platen cover)
W 972 x D 586 mm (With document feeder + Duplex Output Unit)
  • Note1It is recommended to use Fuji Xerox recommended paper. Correct print output may not be possible depending on the requirement.
  • Note2The speed may be reduced due to the image quality adjustment.
  • Note380 gsm paper.
  • Note464 gsm paper.
  • Note5Copy process may stop temporarily for stabilization of image quality.
  • Note6Excluding Toner Cartridge.
  • Note7When the Bypass tray is fully extended.

Print Function

Item Description
Type Built-in type
Output Paper Size Same as the Basic Specifications / Copy Function
Continuous Print Speed Same as the Basic Specifications / Copy Function
Print ResolutionNote1 Output Resolution 1200 x 2400 dpi
Data Process Resolution 600 x 600 dpi
Page Description Language PCL6 / PCL5e, HBPL
Network Protocol Ethernet : TCP/IP (lpd, IPP/IPPS, Port9100, SMB, WSD)
Operating SystemNote2 PCL6 Driver (Standard) Windows® XP (32bit)
Windows Server® 2003 (32bit)
Windows Vista® (32bit)
Windows Server® 2008 (32bit)
Windows® 7 (32bit)
Windows® 8 (32bit)
Windows® 8.1 (32bit)
Windows® XP Professional (64bit)
Windows Server® 2003 (64bit)
Windows Vista® (64bit)
Windows Server® 2008 (64bit)
Windows® 7 (64bit)
Windows Server® 2008 R2 (64bit)
Windows® 8 (64bit)
Windows Server® 2012 (64bit)
Windows® 8.1 (64bit)
Windows Server® 2012 R2 (64bit)
Mac OS X-Driver (Standard) Mac OS X 10.5 Leopard
Mac OS X 10.6 Snow Leopard
Mac OS X 10.7 Lion
OS X 10.8 Mountain Lion
OS X 10.9 Mavericks
Fonts PCL6 / PCL5e : 81 European fonts, 36 Symbol set
Interface Ethernet 100BASE-TX / 10BASE-T, USB 2.0
  • NoteWSD stands for Web Services on Devices.
  • Note1The speed may be reduced due to the image quality adjustment. The speed may also be reduced depending on the document attributes.
  • Note2Please refer to the Fuji Xerox website for the latest supported operating systems.

Scan Function

Item Description
Type Colour Scanner
Original Size Same as the Basic Specifications / Copy Function
Scan Resolution TWAIN Monochrome and greyscale : 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi, 150 x 150 dpi
Colour : 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi, 150 x 150 dpi
WIA Colour, monochrome and greyscale : 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi, 150 x 150 dpi
Scanning SpeedNote1 B / W : 24 ppm, Colour : 19 ppm
[Fuji Xerox standard paper (A4 LEF), 200 dpi]
Interface Ethernet 100BASE-TX / 10BASE-T, USB2.0
Scan to PC (TWAIN / WIA : USB) Interface USB2.0
Driver TWAIN / WIA
Operating SystemNote2 Windows® XP (32bit)
Windows Server® 2003 (32bit)
Windows Vista® (32bit)
Windows Server® 2008 (32bit)
Windows® 7 (32bit)
Windows® 8 (32bit)
Windows® 8.1 (32bit)
Windows® XP Professional (64bit)
Windows Server® 2003 (64bit)
Windows Vista® (64bit)
Windows Server® 2008 (64bit)
Windows® 7 (64bit)
Windows® 8 (64bit)
Windows Server® 2008 R2 (64bit)
Windows Server® 2012 (64bit)
Windows® 8.1 (64bit)
Windows Server® 2012 R2 (64bit)
Mac OS X 10.5 Leopard
Mac OS X 10.6 Snow Leopard
Mac OS X 10.7 Lion
OS X 10.8 Mountain Lion
OS X 10.9 Mavericks
Scan to PC Interface Ethernet 100BASE-TX / 10BASE-T
Network Protocol TCP/IP (SMB, FTP, WSD)
Operating System Windows® XP (32bit)
Windows Server® 2003 (32bit)
Windows Vista® (32bit)
Windows Server® 2008 (32bit)
Windows® 7 (32bit)
Windows® 8 (32bit)
Windows® 8.1 (32bit)
Windows® XP Professional (64bit)
Windows Server® 2003 (64bit)
Windows Vista® (64bit)
Windows Server® 2008 (64bit)
Windows® 7 (64bit)
Windows® 8 (64bit)
Windows Server® 2008 R2 (64bit)
Windows Server® 2012 (64bit)
Windows® 8.1 (64bit)
Windows Server® 2012 R2 (64bit)
Mac OS X 10.5 Leopard
Mac OS X 10.6 Snow Leopard
Mac OS X 10.7 Lion
OS X 10.8 Mountain Lion
OS X 10.9 Mavericks
File Format Monochrome binary : TIFF / DocuWorks / PDF
Greyscale / Colour : TIFF / JPEG / DocuWorks / PDF
Scan to e-mail Interface Ethernet 100BASE-TX / 10BASE-T
Network Protocol TCP/IP (SMTP)
File Format Monochrome binary : TIFF / DocuWorks / PDF
Greyscale / Colour : TIFF / JPEG / DocuWorks / PDF
  • NoteWIA stands for Windows Imaging Acquisition.
  • NoteWSD stands for Web Services on Devices.
  • Note1The scanning speed varies depending on the documents.
  • Note2Please refer to the Fuji Xerox website for the latest supported operating systems.

Fax Function (Optional)

Item Description
Document Size Max. : A3, 11 x 17"
Recording Paper Size Max. : A3, 11 x 17", Min. : A5
Transmission Time 2 seconds and more but fewer than 3 secondsNote1
Transmission Mode ITU-T G3
Scanning Resolution Standard 8 x 3.85 lines / mm, 200 x 100 dpi
Fine / Photo 8 x 7.7 lines / mm, 200 x 200 dpi
Super Fine (400 dpi) 16 x 15.4 lines / mm, 400 x 400 dpi
Coding Method MH, MR, MMR, JBIG
Transmission Speed G3 : 33.6 / 31.2 / 28.8 / 26.4 / 24.0 / 21.6 / 19.2 / 16.8 / 14.4 / 12.0 / 9.6 / 7.2 / 4.8 / 2.4 kbps
Applicable Lines Telephone subscriber line, PBX, Fax communication (PSTN) , Max. 1 ports
  • Note1When A4 size document with approximately 700 characters is transmitted in standard image-quality (8 x 3.85 lines / mm) and in high-speed mode (28.8 kbps or faster, JBIG). Only indicates the time for transmitting the image information and does not include the communication control time. The total communication time will vary depending on the contents of the document, the type of machine receiving the fax, and line condition.

Duplex Automatic Document Feeder

Item Description
Type Duplex Automatic Document Feeder
Original Size / Paper Weight Max. : A3, 11 x 17", Min. : A5 (Non-standard size : 125 x 125 mm)
38 to 128 gsm (2 Sided : 50 to 128 gsm)
CapacityNote1 110 sheets
Feeding Speed (A4 LEF Simplex) B / W : 20 ppm, Colour : 18 ppm
Dimensions W 540 x D 492 x H 119 mm
Weight 7 kg
  • Note180 gsm paper.

Duplex Output Unit

Item Description
Paper Size Same as the Basic Specifications / Copy Function
Paper Weight 60 to 169 gsm

One Tray Module (Optional)

Item Description
Paper Size Same as the Basic Specifications / Copy Function
Paper Weight 60 to 256 gsm
Paper Feed CapacityNote1 500 sheets
Dimensions W 541 x D 586 x H 113 mm
Weight 11 kg
  • Note180 gsm paper.

Direct Fax Functional (Optional)

Item Description
Document Size A3, B4, A4
Resolution As same image quality indicated in Scanning Resolution for Fax Function
Transmission Speed Same as the Fax Function
Applicable Lines Same as the Fax Function
Operating SystemNote1 Standard (PCL6 Driver) Windows® XP (32bit)
Windows Server® 2003 (32bit)
Windows Vista® (32bit)
Windows Server® 2008 (32bit)
Windows® 7 (32bit)
Windows® 8 (32bit)
Windows® 8.1 (32bit)
Windows® XP Professional (64bit)
Windows Server® 2003 (64bit)
Windows Vista® (64bit)
Windows Server® 2008 (64bit)
Windows® 7 (64bit)
Windows Server® 2008 R2 (64bit)
Windows® 8 (64bit)
Windows Server® 2012 (64bit)
Windows® 8.1 (64bit)
Windows Server® 2012 R2 (64bit)
Standard (Mac OS X Driver) Mac OS X 10.5 Leopard
Mac OS X 10.6 Snow Leopard
Mac OS X 10.7 Lion
OS X 10.8 Mountain Lion
OS X 10.9 Mavericks
  • Note1Please refer to the Fuji Xerox website for the latest supported operating systems.
