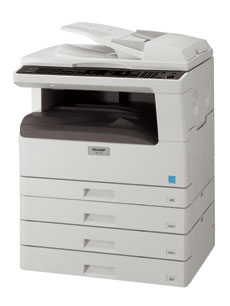

Sharp Printer AR 5520

General

Type	Desktop
Paper size	Max. A3 (11" x 17"), min. A5 (5 1/2" x 8 1/2") [min. A6R via bypass]
Paper capacity	[AR-5520] 600 sheets (250 x 2 + 100), max. 1,100 sheets with option [AR-5516] 350 sheets (250 + 100), max. 1,100 sheets with option
First copy time*1	7.2 seconds
Warm-up time	45 seconds
Memory	64 MB
Power requirements	Rated local AC voltage ±10%, 50/60 Hz
Power consumption	Max. 1.2 kW
Dimensions (W x D x H) (including document cover)	[AR-5520] 590 x 550 x 555 mm (23 15/64" x 21 21/32" x 21 55/64") [AR-5516] 590 x 550 x 470 mm (23 15/64" x 21 21/32" x 18 33/64")
Weight (approx.)	[AR-5520] 33.1 kg (73.0 lbs.) [AR-5516] 28.2 kg (62.2 lbs.)

Copier

Copy speed		20/16 cpm (A4 size, 8 1/2" x 11")
Original size		Max. A3 (11" x 17")
Continuous copy		Max. 999 copies
Resolution	Scan	AE: 600 x 300 dpi (default) Photo: 600 x 600 dpi
	Print	600 x 600 dpi
Gradation		256 levels
Zoom range		25% to 400% in 1% increments (50% to 200% using SPF)
Fixed copy ratios		Metric: 50, 70, 81, 86, 100, 115, 122, 141, 200% Inch: 50, 64, 77, 95, 100, 121, 129, 141, 200%

Printer

Print speed (max.) (A4 size, 8 1/2" x 11")	[AR-5520] 20 ppm [AR-5516] 16 ppm
Resolution	600 x 600 dpi
Interface	USB 2.0
Supported OS	Windows® 2000, Windows® XP, Windows Vista®
Printer language	SPLC

Scanner

Compatibility	TWAIN compliant
Resolution	Monochrome (binary): 600 x 600 dpi Greyscale: 300 x 300 dpi
File formats	BMP, TIFF, PDF
Scanner utilities	Button Manager, Sharpdesk*2
Supported OS	Windows® 2000, Windows® XP, Windows Vista®
